NAS1802-3-8
Machine ScrewsMachine Screw

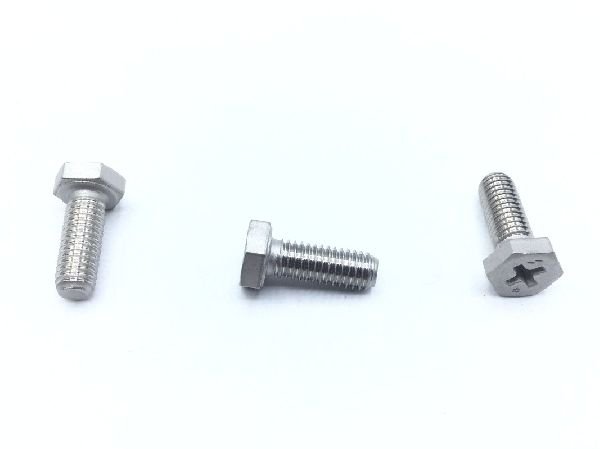

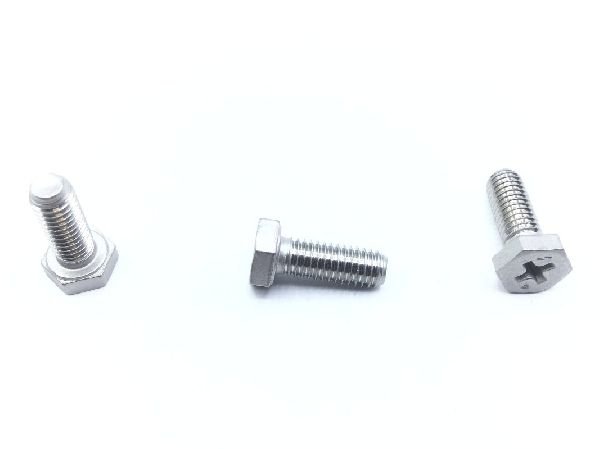

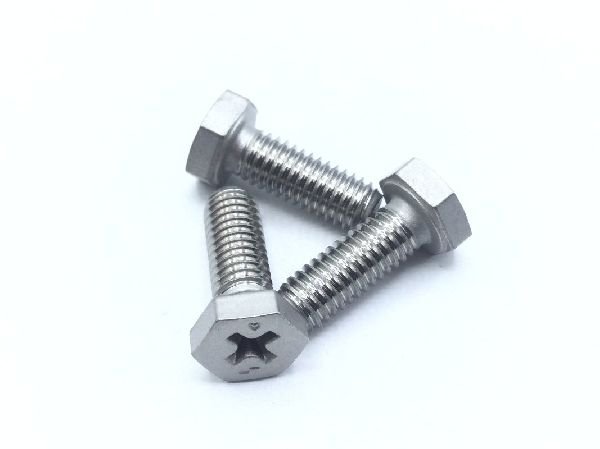

Length: 1/2″, thread: 10-32, hex head, cruciform recess, full thread, corrosion resistant steel, NAS1802 series screw
Description
| Specification | Details |
|---|---|
| End Application | MRAP RG-33 |
| Fastener Length | Between 0.484 inches and 0.531 inches |
| Head Height | Between 0.105 inches and 0.120 inches |
| Head Style | Hexagon |
| Internal Drive Style | Cross Recess Type 1 |
| Min. Tensile Strength (psi) | 160000 pounds per square inch |
| Thread Diameter | 0.190 inches |
| Screw Material | Iron Alloy 660 |
| Screw Material Specification | AMS 5731 Association Standard (Single Material Response) or AMS 5737 Association Standard (Single Material Response) |
| Screw Surface Treatment | Passivate |
| Screw Surface Treatment Specification | QQ-P-35 Federal Specification (Single Treatment Response) |
| Specification Data | 80205-NAS1802 Professional/Industrial Association Standard |
| Thread Class | 3A |
| Thread Direction | Right-hand |
| Thread Length | Between 0.450 inches and 0.499 inches |
| Thread Qty Per Inch (TPI) | 32 |
| Thread Series Designator | UNJF (Fine thread with external controlled root radius) |
| Width Between Flats | Between 0.305 inches and 0.314 inches |
