NAS1801-06-8
Machine ScrewsMachine Screw

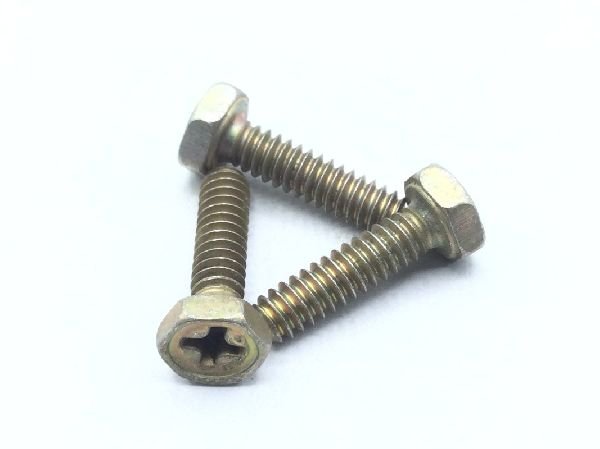

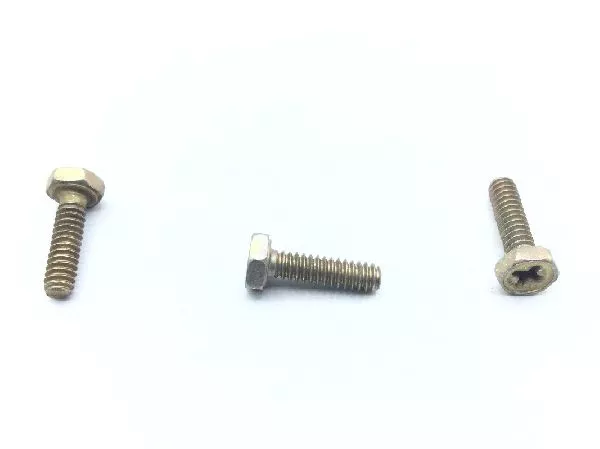

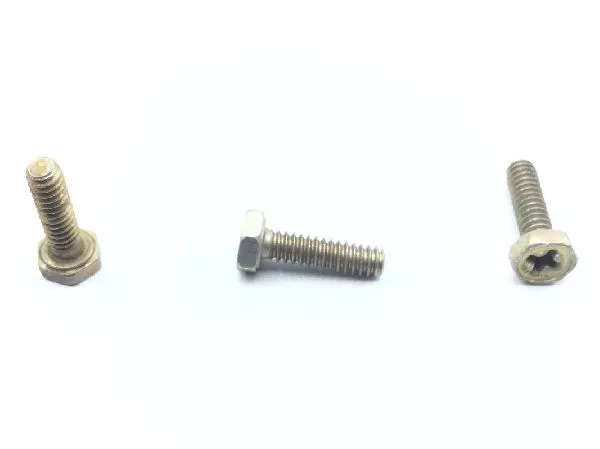

Length: 1/2″, thread: 6-32, hex head, cruciform recess, full thread, alloy steel, NAS1801 series screw
Description
| Specification | Details |
|---|---|
| Fastener Length | Between 0.484 inches and 0.531 inches |
| Head Height | Between 0.080 inches and 0.093 inches |
| Head Style | Dished Hexagon |
| Material | Steel Comp 4340 or Steel Comp 8740 |
| Material Specification |
MIL-S-5000 Military Specification (Single Material Response) or MIL-S-6049 Military Specification (Single Material Response) or AMS6322 Association Standard (Single Material Response) |
| Min. Tensile Strength (psi) | 160000 pounds per square inch |
| Thread Diameter | 0.138 inches |
| Specification Data | 80205-NAS1801 Professional/Industrial Association Standard |
| Surface Treatment | Cadmium |
| Surface Treatment Specification | Class 2 Federal Specification, Type 2 QQ-P-416 (Single Treatment Response) |
| Thread Class | 3A |
| Thread Direction | Right-hand |
| Thread Length | Between 0.420 inches and 0.499 inches |
| Thread Qty Per Inch (TPI) | 32 |
| Thread Series Designator | UNJC |
| Width Between Flats | Between 0.243 inches and 0.251 inches |
