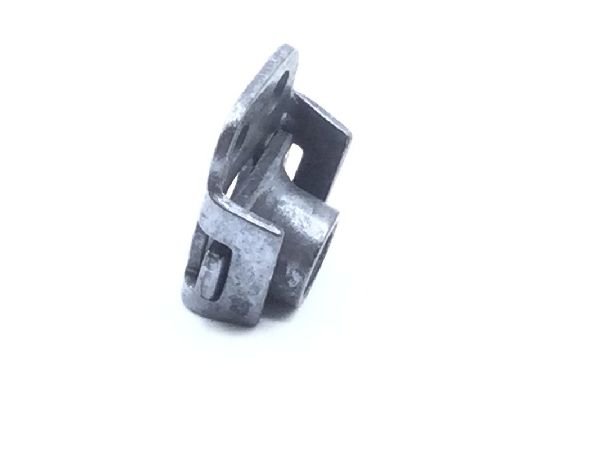

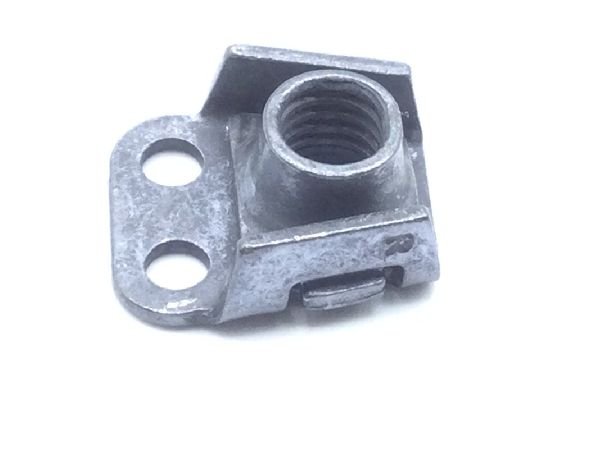

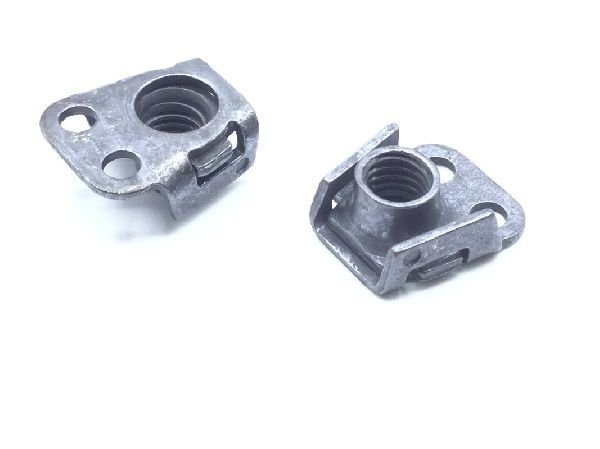

NAS1789-3
NutsNut Plate
Thread: 10-32, Nut Length: 1/2″, Nut Height: 1/4, two lug, dry film lubricant, anchor, NAS1789 series nut
Description
| Specification | Details |
|---|---|
| Thread Qty Per Inch (TPI) | 32 |
| Thread Series | UNJF (Fine thread with external controlled root radius) |
| Thread Direction | Right-hand |
| Thread Class | 3B |
| Temperature Rating | 450.0 degrees Fahrenheit |
| Surface Treatment Specification | Class 2 Federal Specification, Type 2 QQ-P-416 (Single Treatment Response) |
| Surface Treatment | Cadmium and Chromate |
| Specification Data | 80205-NAS1789 Professional/Industrial Association Standard |
| Plate Width | 0.490 inches |
| Nut Style | Plate |
| Plate Thickness | 0.032 inches |
| Nut Mounting Provision | Straight holes |
| Nut Length | 0.525 inches |
| Nut Height | 0.250 inches |
| Mounting Hole Diameter | Between 0.098 inches and 0.103 inches |
| Nut Counterbore Depth | 0.062 inches (nut) |
| Material | Steel |
| Mounting Hole Arrangement Style | 2 holes |
| Lubrication | Dry film lubricant |
| Features Provided | Floating nut |
| Locking Feature | Prevailing torque, all-metal design |
| Distance From Aperture Center To Mounting Hole Center | 0.250 inches |
| Counterbore Diameter | 0.194 inches (nut) |
| Center To Center Distance Between Mounting Holes Along Width | Between 0.217 inches and 0.221 inches |
| Thread Size | 0.190 inches |
