NAS1474A3

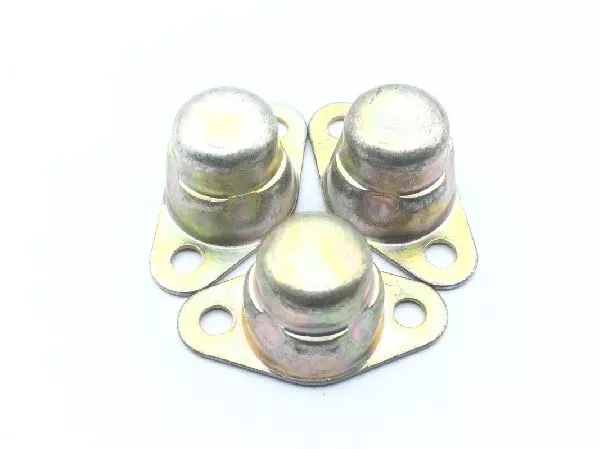

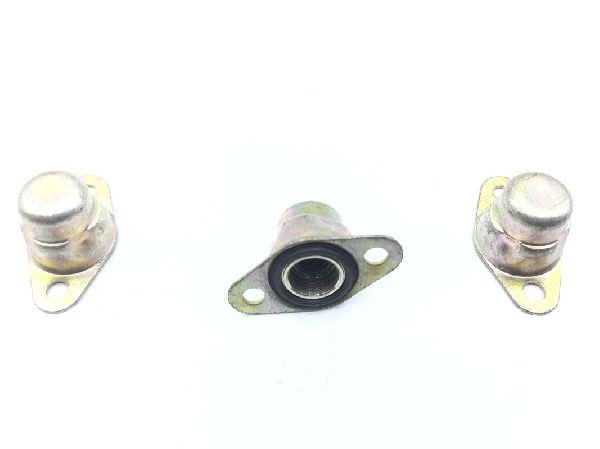

NutsNAS1474A03 #10-32 NUT PLATE CADMIUM PLATED DRY FILM LUBE
Thread: 10-32, self locking, capped, reduced rivet spacing, two lug, steel nut and shell, NAS1474 series nut
Description
| Specification | Details |
|---|---|
| Surface Treatment | Cadmium |
| Surface Treatment Specification | Class 2 Federal Specification, Type 2 QQ-P-416 (Single Treatment Response) |
| Plate Width | 0.443 inches |
| Plate Thickness | 0.030 inches |
| Overall Height | 0.405 inches |
| Nut Style | Plate |
| Nut Mounting Provision | Straight Holes |
| Nut Length | 0.840 inches |
| Nut Height | 0.268 inches |
| Mounting Hole Diameter | 0.098 inches |
| Mounting Hole Arrangement Style | 2 Holes |
| Material | Steel |
| Lubrication | Dry Film Lubricant |
| Features Provided | Floating Nut |
| Locking Feature | Prevailing Torque All Metal Design |
| Distance From Aperture Center To Mounting Hole Center | Between 0.290 inches and 0.300 inches |
| Center To Center Distance Between Mounting Holes Along Length | Between 0.588 inches and 0.592 inches |
| Temperature Rating | 225 degrees Fahrenheit |
| Thread Class | 3B |
| Thread Direction | Right-hand |
| Thread Qty Per Inch (TPI) | 32 |
| Thread Series | UNJF (Fine Thread with External Controlled Root Radius) |
| Thread Size | 0.19 inches |
