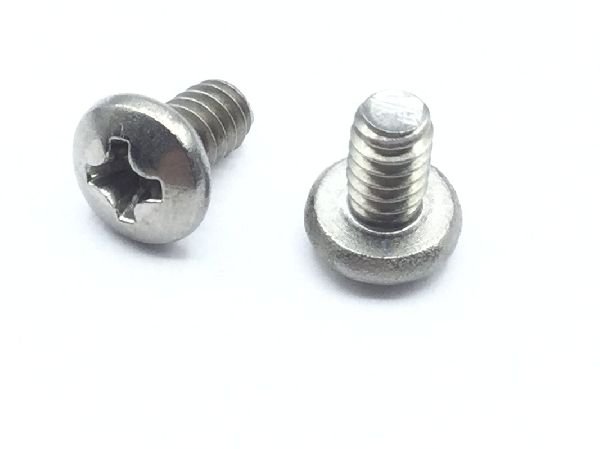

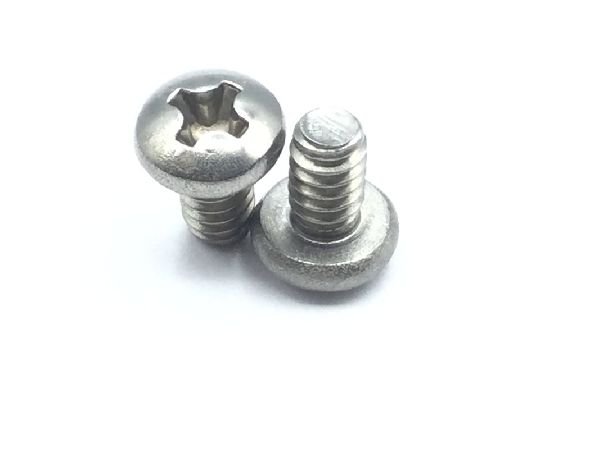

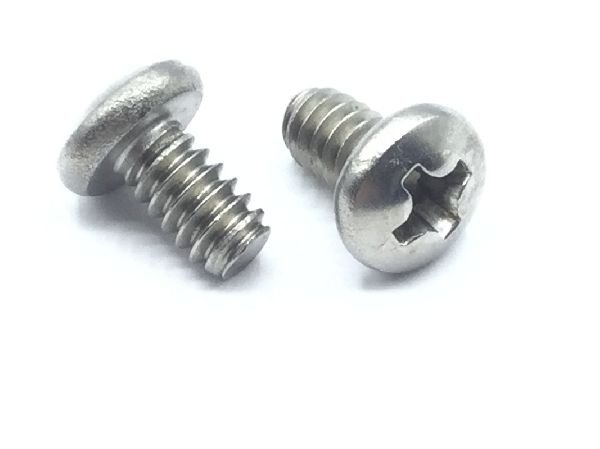

MS51957-26
Screws#6-32 L:1/4″ PHILLIPS ROUNDED HEAD SCREW SS
Length: 1/4, thread: 6-32, pan head, corrosion resistant steel, coarse thread, MS51957 series screw
Description
| Specification | Details |
|---|---|
| Thread Diameter | 0.138 inches |
| Thread Class | 2A |
| Surface Treatment | Oxide |
| Surface Treatment Specification | Class 4 Military Specification Single Treatment Response MIL-C-13924 |
| Screw Material Specification | 300 Series Federal Standard 1st Material Response or Comp 16-18 or 18-8 Assn Standard 2nd Material Response; 300 Series Federal Specification 1st Material Response or 66 QQ-S-763 |
| Nondefinitive Specification/Std Data | 3 Type and 9C Style |
| Min. Tensile Strength (PSI) | 80,000 pounds per square inch |
| Material | Stainless Steel |
| Internal Drive Style | Cross Recess Type 1 |
| Head Style | Pan |
| Head Height | Between 0.087 inches and 0.097 inches |
| Head Diameter | Between 0.256 inches and 0.270 inches |
| Fastener Length | Between 0.219 inches and 0.250 inches |
| Thread Direction | Right-hand |
| Thread Length | Between 0.157 inches and 0.250 inches |
| Thread Qty Per Inch (TPI) | 32 |
| Thread Series Designator | UNC (Coarse Thread) |
