MS35206-213

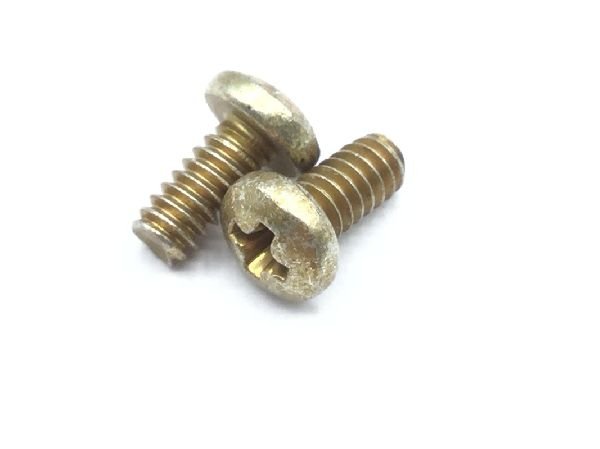

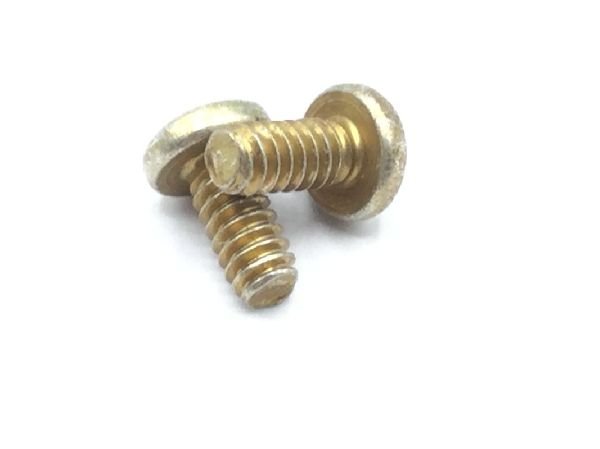

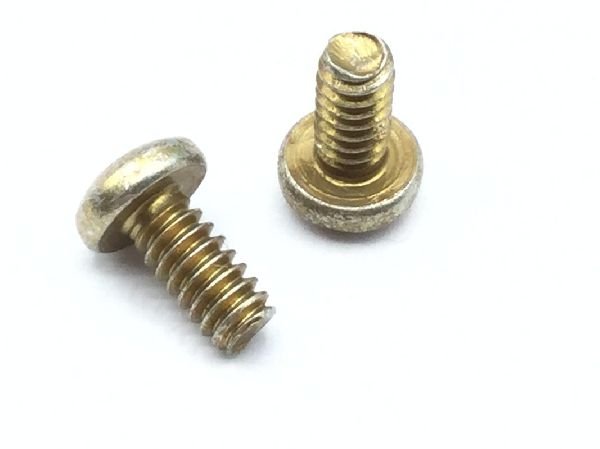

ScrewsSteel Pan Head Phillips Screws, 4-40 Thread Size, 1/4″ Long
Length: 1/4″, thread: 4-40, pan head, cadmium plated carbon steel, coarse thread, MS35206 series screw
Description
| Specification | Details |
|---|---|
| Thread Diameter | 0.112 inches |
| Thread Class | 2A |
| Surface Treatment | Cadmium and Chromate |
| Surface Treatment Specification | Class 3 Federal Specification, All Treatment Responses, Type 2 QQ-P-416 |
| Material Specification | QQ-S-633 Federal Specification, Single Material Response |
| Material | Steel |
| Min. Tensile Strength (PSI) | 60,000 pounds per square inch |
| Internal Drive Style | Cross Recess Type 1 |
| Head Style | Pan |
| Head Height | Between 0.070 inches and 0.080 inches |
| Head Diameter | Between 0.205 inches and 0.219 inches |
| Fastener Length | 0.250 inches |
| Thread Direction | Right-hand |
| Thread Length | 0.250 inches |
| Thread Qty Per Inch (TPI) | 40 |
| Thread Series Designator | UNC (Coarse Thread) |
