MS24693-C48

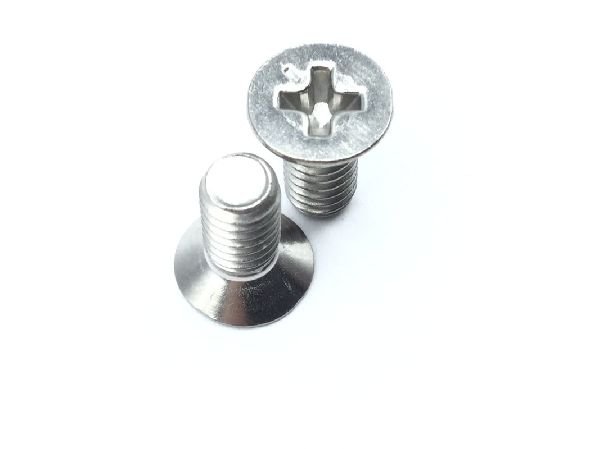

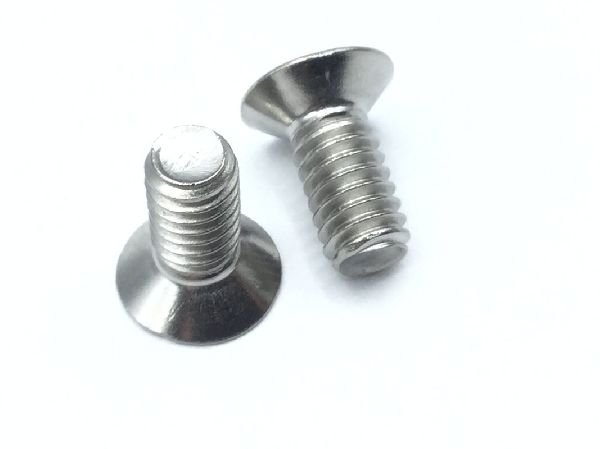

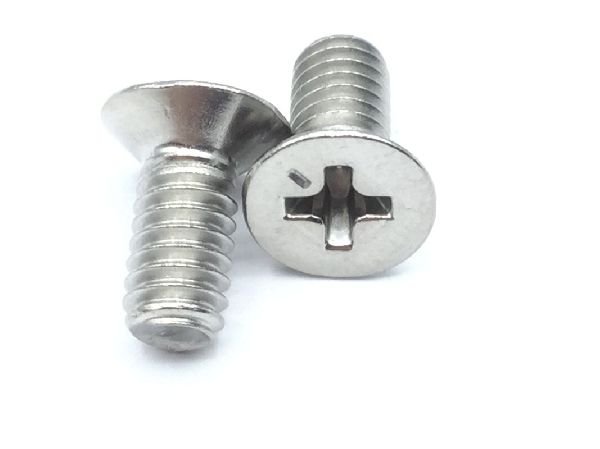

Screws#8-32 L:3/8″PHILLIPS FLAT HEAD SCREWS SS
Length: 3/8″, thread: 8-32, countersunk, flat head, corrosion resistant steel, MS24693 series screw
Description
| Specification | Details |
|---|---|
| Thread Series Designator | UNC (Coarse Thread) |
| Thread Qty Per Inch (TPI) | 32 |
| Thread Length | Between 0.313 inches and 0.375 inches |
| Thread Direction | Right-hand |
| Thread Diameter | 0.164 inches |
| Thread Class | 2A |
| Screw Surface Treatment | Passivate |
| Screw Material | Steel Comp |
| Screw Material Specification | 66 Federal Standard (All Material Responses) |
| Min. Tensile Strength (PSI) | 80,000 pounds per square inch |
| Internal Drive Style | Cross Recess Type 1 |
| Head Style | Flat Countersunk |
| Head Diameter | Between 0.285 inches and 0.332 inches |
| Countersink Angle | Between 99 degrees and 101 degrees |
| Fastener Length | 0.375 inches |
