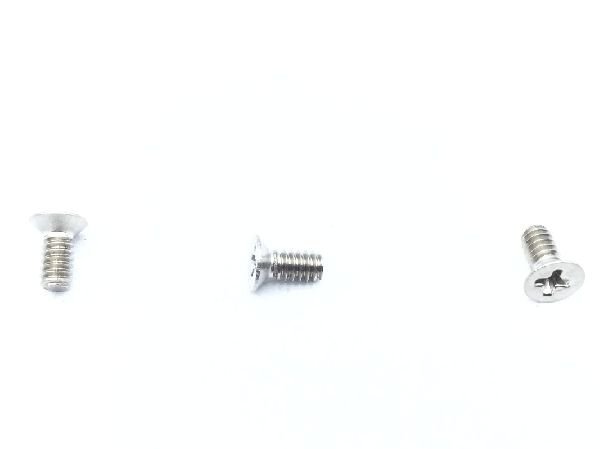

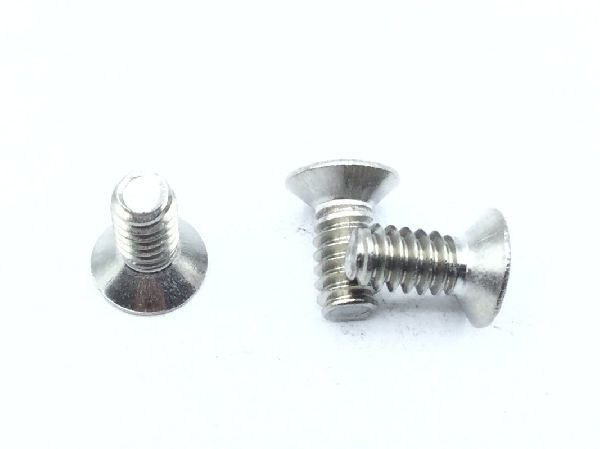

MS24693-C2
Screws#4-40 L:1/4″ FLAT HEAD SCREW SS
Flat head, philips, stainless steel MS24693 series screw
Description
| Specification | Details |
|---|---|
| Thread Qty Per Inch (TPI) | 40 |
| Thread Series Designator | UNC (Coarse Thread) |
| Thread Length | Between 0.200 inches and 0.250 inches |
| Thread Direction | Right-hand |
| Material | Steel |
| Material Specification | 66 Federal Standard (All Material Responses) |
| Surface Treatment | Passivate |
| Thread Class | 2A |
| Thread Diameter | 0.112 inches |
| Head Diameter | Between 0.191 inches and 0.225 inches |
| Internal Drive Style | Cross Recess Type 1 |
| Head Style | Flat Countersunk |
| Fastener Length | Between 0.219 inches and 0.250 inches |
| Countersink Angle | Between 99.0 degrees and 101.0 degrees |
