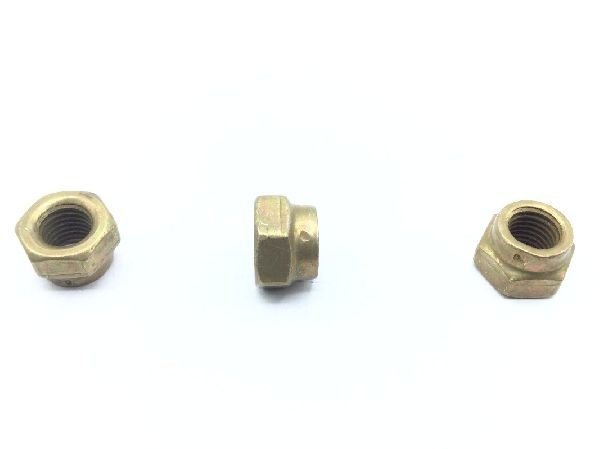

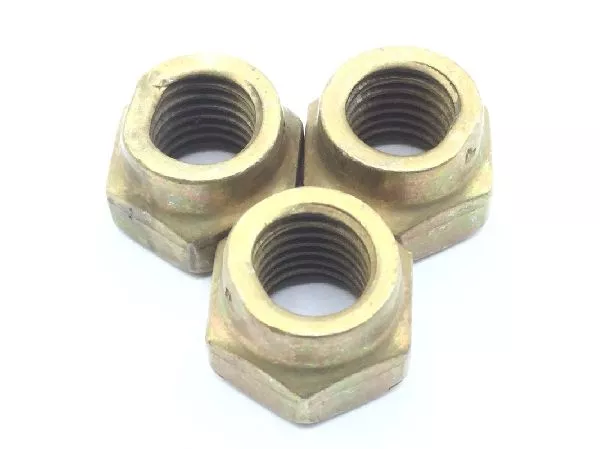

MS21045-5
NutsFlex-Top Locknut for Heavy Vibration Cadmium Chromate Plated Steel, 5/16″- 24 Thread
Thread: 5/16-24, self-locking, regular height, cadmium plated steel, without dry film lube, MS21045 series nut
Description
| Specification | Details |
|---|---|
| Thread Class | 3B |
| Temperature Rating | 450.0 degrees Fahrenheit |
| Surface Treatment Specification | CL 3 Federal Specification, Single Treatment Response, Type 2 QQ-P-416 |
| Surface Treatment | Cadmium and Chromate |
| Nut Style | Hexagon |
| Nut Height | Between 0.271 inches and 0.360 inches |
| Lubrication | Soluble Lubricant |
| Material | Steel |
| Locking Feature | Prevailing Torque All Metal Design |
| Countersink Angle | 88.0 degrees (Nut) |
| Bearing Surface Type | Chamfered or Washer Faced |
| Bearing Surface Finish | 125.0 microinches |
| Thread Direction | Right-hand |
| Thread Qty Per Inch (TPI) | 24 |
| Thread Series | UNJF (Fine Thread with External Controlled Root Radius) |
| Thread Size | 0.312 inches |
| Width Across Flats | Between 0.492 inches and 0.502 inches |
