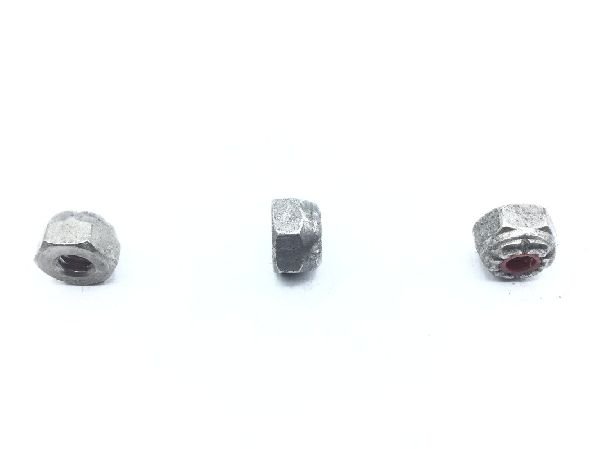

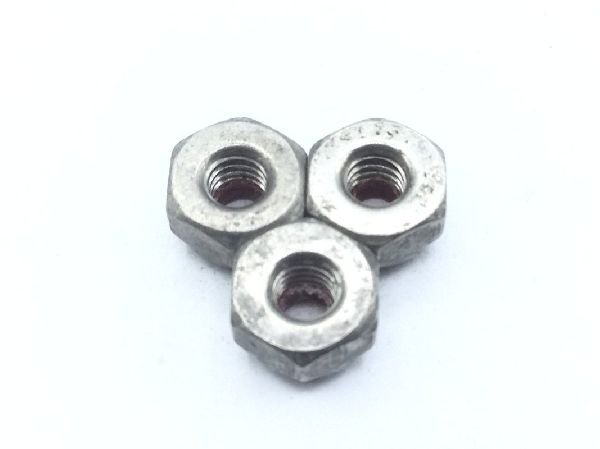

MS21044-C08
Nuts#8-32 THREAD NYLON INSERT LOCKNUT SS
Thread: 8-32, self locking, regular height, corrosion resistant steel, nylon insert, passivated, soluble lubricant, locknut, MS21044 series nut
Description
| Specification | Details |
|---|---|
| Thread Series | UNJC |
| Thread Size | 0.164 inches |
| Width Across Flats | Between 0.336 inches and 0.345 inches |
| Thread Qty Per Inch (TPI) | 32 |
| Thread Direction | Right-hand |
| Thread Class | 3B |
| Nut Style | Hexagon |
| Surface Treatment | Passivate except insert |
| Surface Treatment Specification | QQ-P-35 Federal Specification (Single Treatment Response, except insert) |
| Temperature Rating | 250 degrees Fahrenheit |
| Nut Height | Between 0.219 inches and 0.281 inches |
| Material | Steel |
| Material Specification | AMS 5688 Assn Standard 1st Material Response or AMS 5640 Assn Standard 2nd Material Response or AMS 5647 Assn Standard 3rd Material Response (Nut) |
| Lubrication | Soluble Lubricant |
| Locking Feature | Prevailing Torque with Nonmetallic Insert |
| Bearing Surface Finish | 125 microinches |
| Countersink Angle | 88 degrees (Nut) |
| Bearing Surface Type | Chamfered or Washer Faced |
