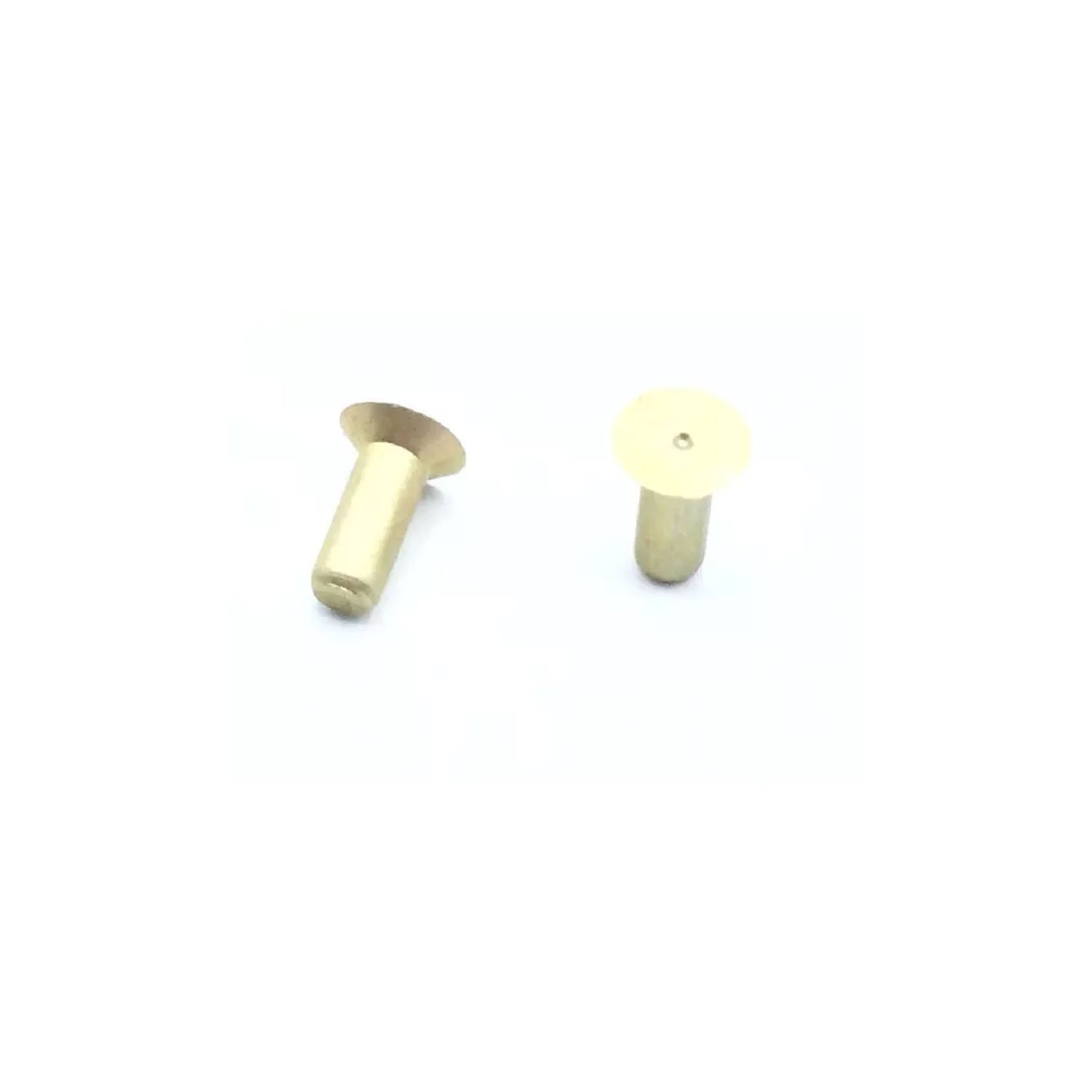

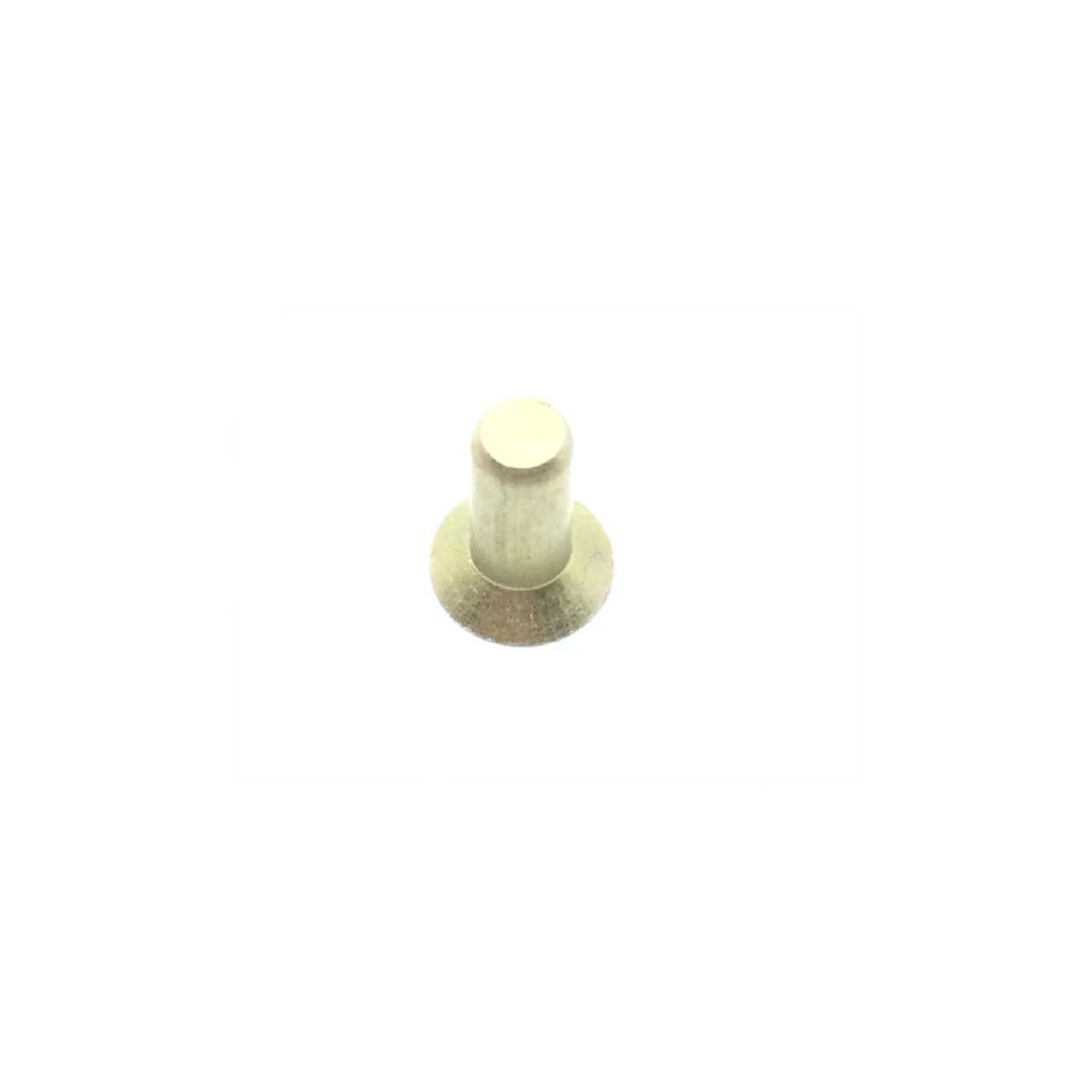

MS20426AD3-4
RivetsLength: 1/4″, diameter: 3/32″, countersunk precision head, aluminum alloy, roughly 5,000 pieces per pound, MS20426 series rivet
Description
| Specification | Details |
|---|---|
| Special Features | With a diameter of 0.03 inches, rivet has 0.02 inch depth dimple in head |
| Shank Style | Straight with Radius Chamfered Tip |
| Shear Strength | 26,000 pounds per square inch (single shear) |
| Shank Diameter | Between 0.093 inches and 0.097 inches |
| Material | Aluminum Alloy 2117 |
| III Supplementary Features | Flight Safety Critical |
| Heat Treatment | T-4 Solution Heat Treated |
| Head Style | Flush (Flat) Countersunk |
| Head Major Diameter | Between 0.175 inches and 0.183 inches |
| Fastener Length | Between 0.24 inches and 0.26 inches |
| Countersink Angle | 100 degrees |
| Surface Treatment | Anodize or Chromate |
| Surface Treatment Specification | MIL-A-8625 Military Specification (1st Treatment Response) or MIL-C-5541 Military Specification (2nd Treatment Response) |
