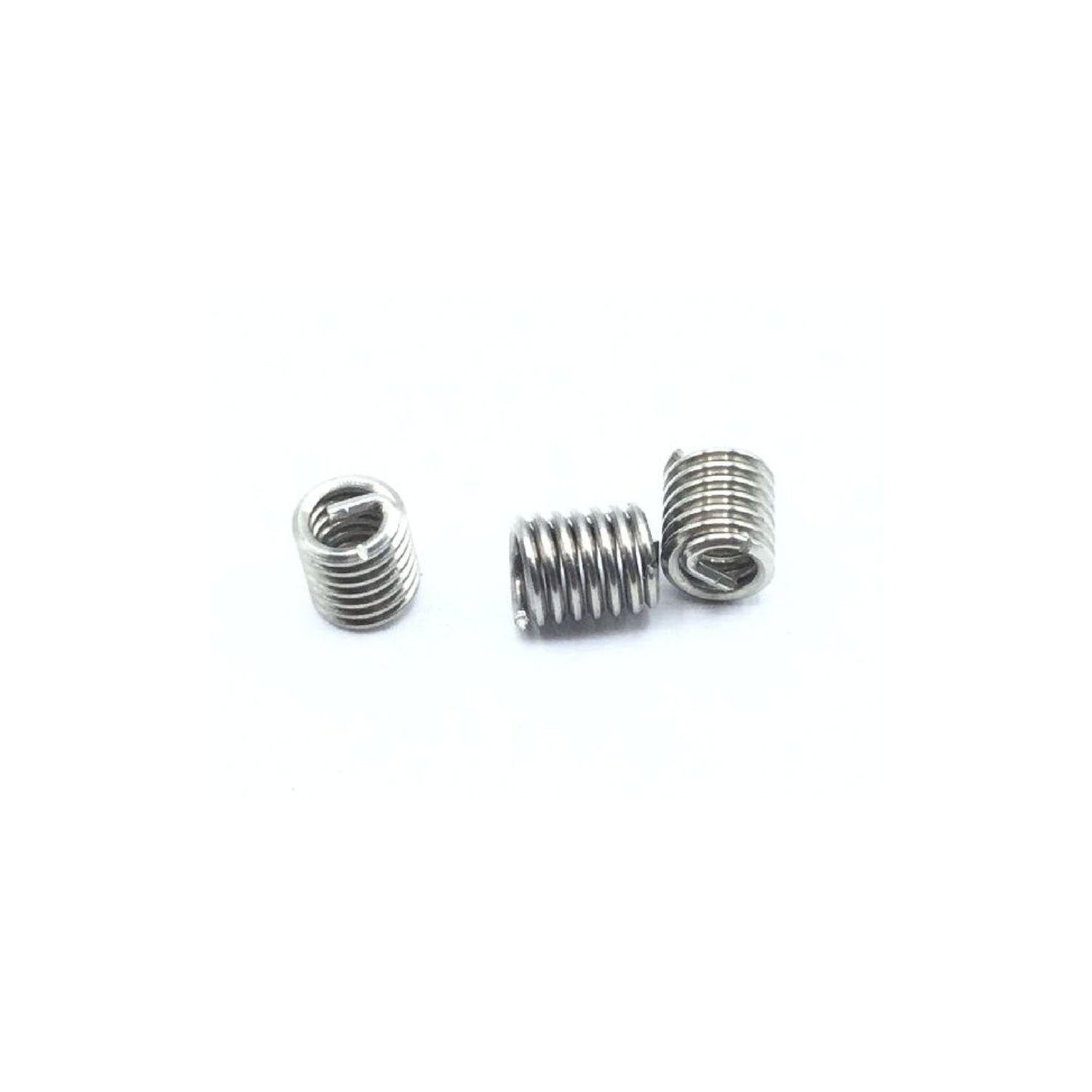

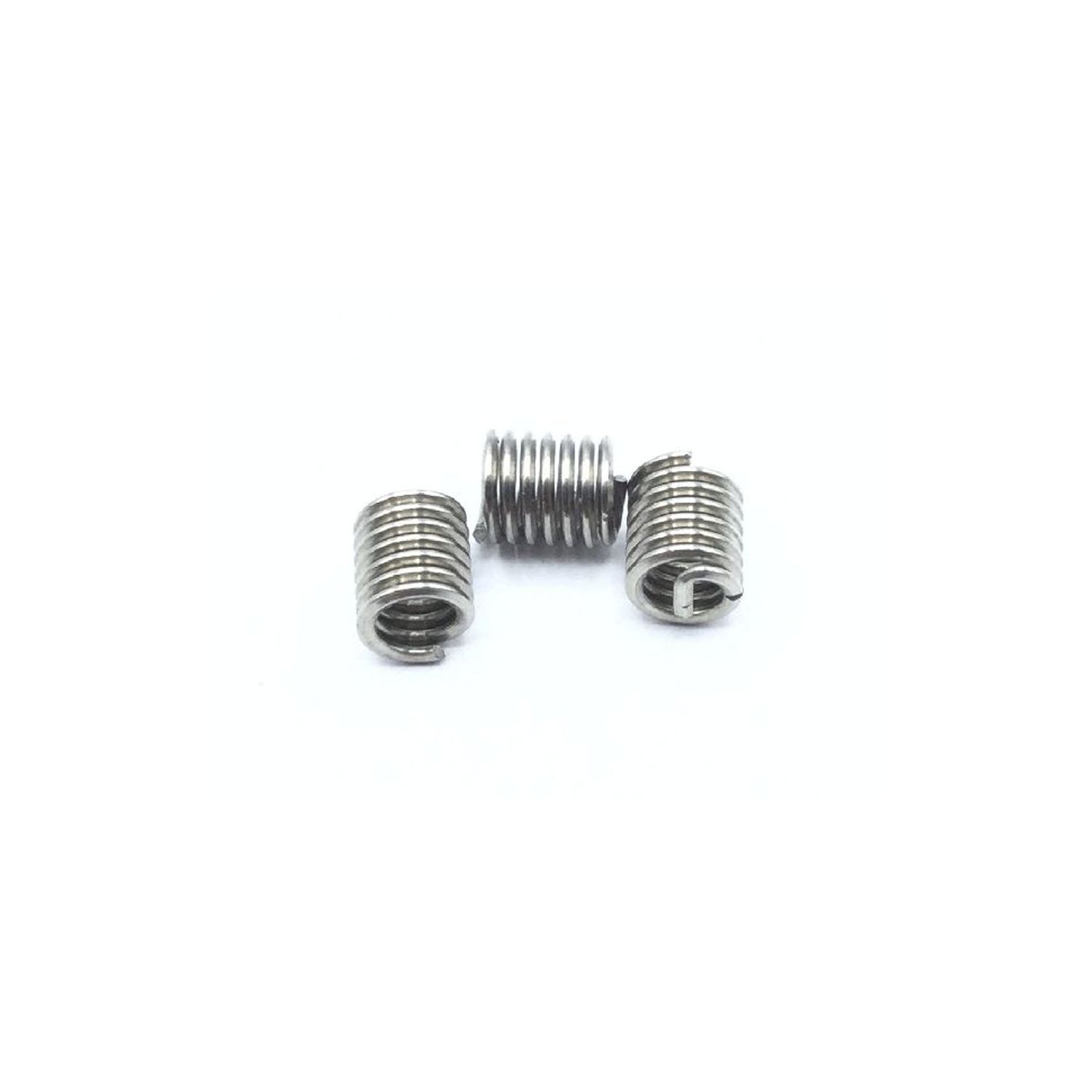

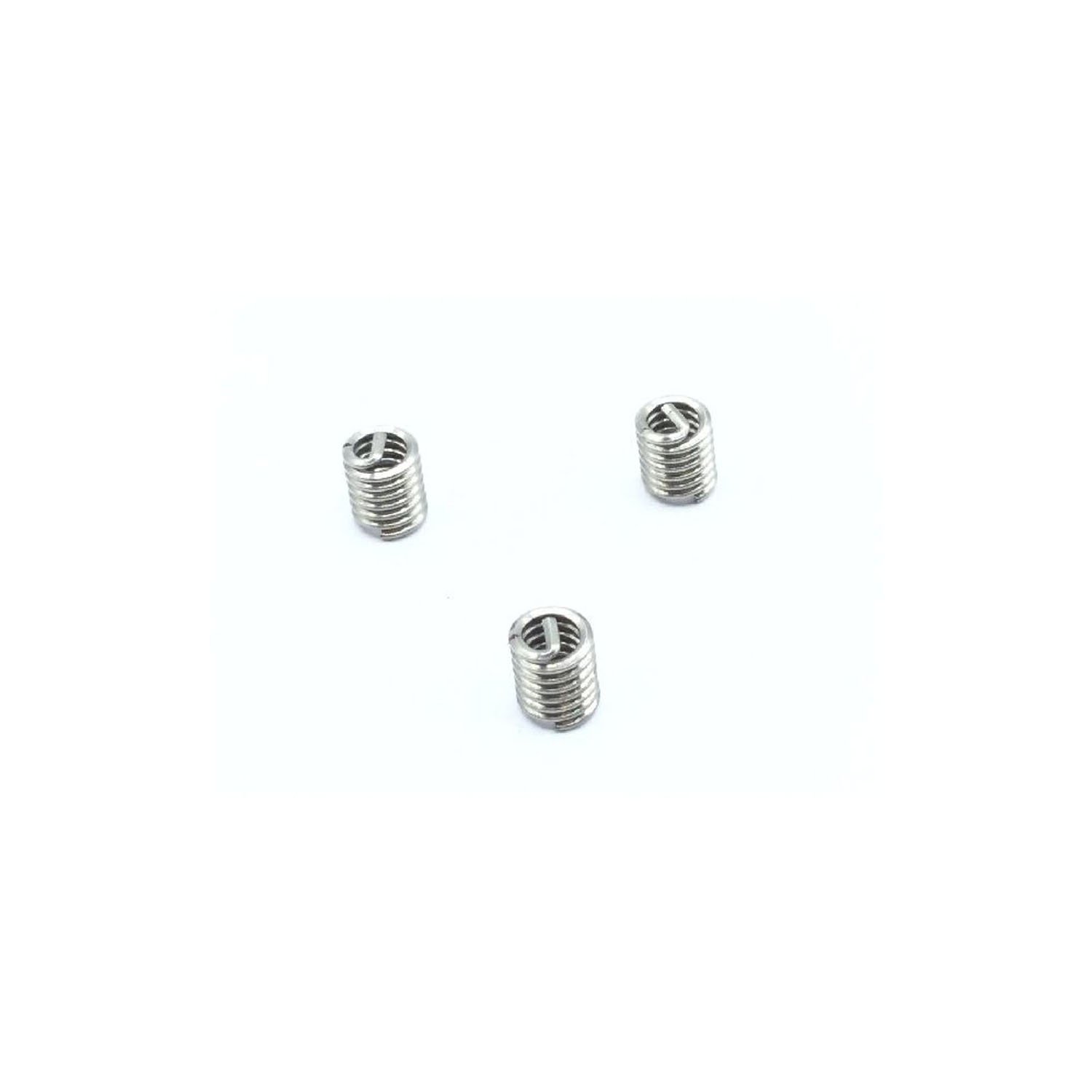

Description
| Specification | Details |
|---|---|
| Thread Direction | Right-hand |
| Length | 0.276 inches nominal |
| Insert Size | 0.178 inches minimum, 0.193 inches maximum |
| Thread Qty Per Inch (TPI) | 32 |
| Thread Size | 0.138 inches |
| Material | Steel, Corrosion Resisting (Overall) |
| Material Specification | AMS 7245 Assn Standard Single Material Response (Overall) |
| Surface Treatment | Passivate (Overall) |
| Style Designator | Coil |
| Thread Series Designator | UNC |
